Asynchronous Webhook Architecture & Queue Management for GTM Pipelines

A funding announcement scraper fires forty webhook events in the same sixty-second window. A bulk LinkedIn export hits your Zapier endpoint with a burst of three hundred profile updates at once.

Both scenarios are common, unremarkable events in a signal-based GTM pipeline, and both are exactly the kind of load that quietly drops payload data in a naively-built webhook receiver, with no error, no alert, just a handful of accounts that silently never made it into your CRM.

I've covered the higher-level workflow patterns and tool choices that make up a GTM engineering stack extensively.

This piece is different, it's the backend engineering underneath all of that: why a synchronous, single-threaded webhook endpoint fails under real GTM signal volume.

The specific architecture, queues, async workers, dead-letter queues, idempotency, that actually holds up when a burst of events arrives all at once rather than trickling in one at a time the way a simple integration was designed to handle.

Why naive Webhook handling fails at real GTM volume?

Most no-code and low-code tools, Zapier, Make, a simple webhook receiver bolted onto a script, process webhook events synchronously and roughly one at a time by default.

This works fine at low volume, a handful of events an hour, and fails in specific, predictable ways the moment volume spikes, which in GTM contexts happens constantly and often without warning.

A scraping job completing and firing its full result set at once, a bulk data export triggering hundreds of individual record-update webhooks in a short window, a signal provider's own batch job landing all at once rather than trickling in steadily.

Synchronous processing creates a bottleneck that drops or delays events under burst load.

If your receiving endpoint processes each webhook fully, calling an enrichment API, writing to a CRM, before acknowledging receipt and moving to the next one, a burst of events queues up faster than they can be processed.

Many webhook-sending systems will time out and consider the delivery failed if they don't get an acknowledgment quickly, sometimes retrying and creating a duplicate, sometimes simply giving up and dropping the event entirely.

No retry logic means a transient failure becomes a permanent data loss. If the enrichment API or the CRM you're writing to is briefly unavailable, rate-limited, or slow, a naive integration that doesn't retry simply loses that specific event, with no record it ever happened, and no mechanism to catch and reprocess it later.

No idempotency handling means retries create duplicates instead of being safely ignored. If a webhook sender does retry a delivery, whether because your endpoint was slow or because of a network blip, and your system has no way to recognize.

"I've already processed this exact event," a fully working retry mechanism upstream can still produce duplicate CRM records or duplicate enrichment charges downstream.

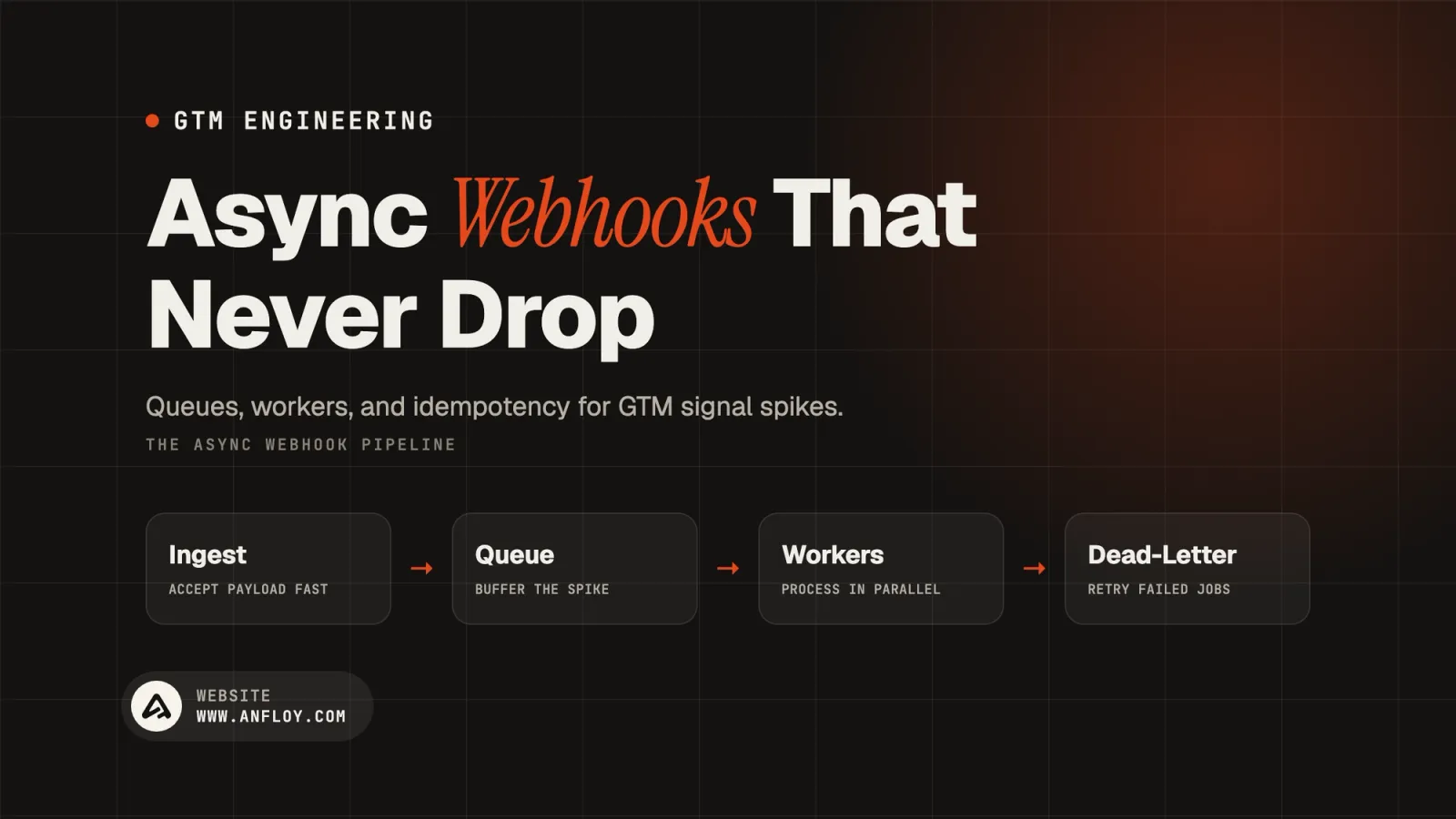

The architecture that actually handles this

The receiving endpoint should do almost nothing except accept and queue

The single most important architectural decision: your webhook receiver's job is to validate the payload's authenticity, write it to a durable queue, and acknowledge receipt immediately, in milliseconds, not to actually process the event synchronously.

This decouples the rate at which events arrive from the rate at which you can actually process them, which is precisely what prevents a burst from overwhelming the endpoint and causing dropped or timed-out deliveries.

A message queue sits between receipt and processing

Once an event is written to a queue, whatever burst of volume triggered it stops being your receiving endpoint's problem.

Redis, using its list or stream data structures, is a common, lightweight choice for teams already running Redis for other purposes. AWS SQS is a common choice for teams already on AWS infrastructure, offering managed durability and dead-letter queue support natively without you having to build that logic yourself.

The specific choice matters less than the architectural principle: events land somewhere durable and ordered, waiting to be processed at whatever rate your downstream systems can actually sustain, rather than being processed the instant they arrive regardless of downstream capacity.

Async worker pools consume from the queue at a controlled, sustainable rate

A pool of worker processes, commonly built with Celery in Python-based stacks, pulls events off the queue and does the actual work, enrichment calls, CRM writes, at a rate you control explicitly rather than a rate dictated by whatever burst just arrived.

This is where you enforce the same downstream rate-limit discipline covered in more depth in reverse ETL for GTM engineers: if your CRM or your enrichment provider has a real API ceiling, the worker pool's concurrency and throughput settings are what actually respect that ceiling, rather than the naive approach of firing every queued event's API call simultaneously the moment the queue has anything in it.

Dead-letter queues catch what genuinely can't be processed

Not every event will process successfully even with retries, a malformed payload, a permanently invalid record, a downstream API returning a genuine, non-transient error.

Rather than losing these silently or retrying them indefinitely and burning resources on something that will never succeed, a dead-letter queue, a defined, separate destination for events that exhaust their retry attempts, captures them for manual review rather than letting them disappear.

This is the same visibility principle covered in AI agent audit trails: a failure that's captured and visible is a manageable problem; a failure that vanishes silently is a much harder one to even know exists.

Idempotency keys make retries safe rather than destructive

Every webhook event should carry, or be assigned upon receipt, a unique identifier your processing logic checks against a record of what's already been handled before doing any actual work.

If the same event arrives twice, whether from an upstream retry or a genuine duplicate delivery, the second arrival gets recognized and safely skipped rather than reprocessed, which is what prevents a working retry mechanism from becoming a source of duplicate CRM records or duplicate billed enrichment calls.

Want a read on whether your current webhook setup would actually survive a real volume spike? Get a free AI infrastructure audit and I'll help you stress-test it.

Backpressure: Respecting Downstream Limits Deliberately

Backpressure is the mechanism that keeps a fast-arriving burst of events from overwhelming a slower downstream system, and it needs to be designed deliberately rather than assumed to happen naturally.

Set explicit worker concurrency limits tied to your actual downstream API ceilings.

If your CRM allows a defined number of API calls per minute, your worker pool's concurrency setting should be calculated against that ceiling directly, not set arbitrarily high and left to trigger rate-limit errors that then have to be caught and retried, wasting effort on calls that were predictably going to fail.

Let the queue absorb bursts rather than trying to prevent them at the source. You often can't control when a signal provider or a scraping job decides to send a burst of forty events at once, and a well-designed queue-and-worker architecture doesn't need to prevent the burst, it just needs to absorb it durably and process it at a sustainable rate afterward, rather than trying to force the upstream source to slow down, which you frequently don't control at all.

Monitor queue depth as an early warning signal, not just processing errors. A queue that's steadily growing, because events are arriving faster than your worker pool can sustainably process them, is a leading indicator of a capacity problem well before it manifests as actual processing failures or unacceptable delay.

Tracking queue depth over time, and alerting when it trends upward rather than staying roughly flat, catches a capacity mismatch while there's still time to address it calmly.

Scale worker pool size dynamically where the underlying infrastructure supports it, rather than provisioning for the worst case permanently.

A fixed worker pool sized for your peak burst volume sits mostly idle the rest of the time, while one sized for typical, steady volume gets overwhelmed the moment a genuine spike hits.

Where your infrastructure supports it, scaling worker count up during a detected queue-depth increase and back down once it clears is a more efficient middle ground than picking one fixed size and living with its tradeoff permanently, though a fixed pool sized with reasonable headroom is a perfectly reasonable starting point before this added complexity is actually warranted.

Handling the specific GTM volume spike patterns

Scraping job completions.

A scraping run that completes and fires its full result set as a batch of Webhook events at once is one of the most common GTM-specific burst patterns.

Design the receiving side assuming this will happen regularly, not as an edge case, since it's genuinely the normal operating pattern for most scraping-based signal detection rather than a rare anomaly.

Bulk LinkedIn or CRM export webhooks.

A bulk data export or sync operation that fires an individual webhook per record, rather than one batched payload for the whole export, can produce hundreds or thousands of near-simultaneous events from a single triggering action.

If the upstream tool offers a batched webhook option instead of per-record events, using it reduces the burst considerably; where it doesn't, your queue and worker architecture needs to be sized with this specific pattern in mind rather than assumed away.

Funding and news-event scraping runs.

Signal sources tied to a scheduled crawl or a periodic API poll tend to fire in a genuine burst at whatever interval that scrape runs, rather than a steady trickle throughout the day.

Scheduling your own downstream processing to be ready for a predictable spike at that specific time, rather than assuming uniform arrival throughout the day, is a small but meaningful design consideration.

Observability for a Webhook pipeline

Track delivery, queue, and processing as three separate, distinct metrics. Whether webhooks are being received successfully, how deep the processing queue is at any given moment, and whether events are completing processing successfully are three genuinely different failure points, and monitoring only one, commonly just whether the receiving endpoint returns a success response, misses failures that happen further downstream in the queue or the worker pool.

Alert on dead-letter queue volume, not just its existence. A dead-letter queue that occasionally catches a single malformed event is healthy and expected.

A dead-letter queue that's steadily accumulating events is a signal something systemic has changed, a downstream API's schema shifted, a credential expired, and it deserves an active alert rather than being checked only when someone happens to remember to look.

Log enough context to actually debug a failure, not just that one occurred. A failed event in your logs or your dead-letter queue should carry the original payload, the specific error encountered, and how many retry attempts were made, enough information to actually diagnose and reprocess it, rather than a bare "processing failed" entry that tells you a problem exists without telling you anything about what it actually was.

Common mistakes in GTM Webhook architecture

Processing webhooks synchronously inside the receiving endpoint.

This is the root cause behind nearly every dropped-payload complaint in high-volume GTM signal pipelines, and it's directly fixed by the queue-and-worker separation covered above rather than any amount of tuning to the synchronous approach itself.

No idempotency handling, turning a working retry mechanism into a source of duplicates.

A retry is supposed to be a safety net. Without an idempotency check, it becomes a liability, since every legitimate retry now risks creating a duplicate record or a duplicate charged API call rather than safely resolving to a no-op.

Silently dropping events that fail processing instead of routing them to a dead-letter queue.

A failed event with no capture mechanism simply disappears, and the first sign anything went wrong is often a person eventually noticing a specific account is missing expected data, days or weeks after the actual failure occurred.

Sizing worker concurrency without checking downstream API limits first.

A worker pool set to process events as fast as technically possible, without regard for what the destination CRM or enrichment API can actually sustain, produces a wave of rate-limit errors during any real burst, which is the exact failure this architecture is meant to prevent, just moved one layer downstream instead of solved.

No monitoring on queue depth, so a capacity problem is only discovered once it's already causing real delay.

Waiting until processing delay becomes visible and complained about, rather than catching a steadily growing queue early through active monitoring, turns a calm, proactive capacity fix into a reactive scramble under pressure.

A worked example

A GTM engineering team runs a signal detection pipeline that scrapes funding announcements on a scheduled crawl every few hours, firing a webhook for each newly detected event directly into a Zapier-based integration that enriches and pushes each account into the CRM synchronously.

During a period when the crawl catches an unusually large batch of announcements at once, roughly sixty events arrive within the same few minutes, and the team later discovers eleven accounts from that batch never made it into the CRM at all, with the Zapier integration having silently timed out on several of the later events in the burst with no visible error surfaced anywhere.

Rebuilding the pipeline, they separate the receiving endpoint from the processing logic entirely: an endpoint that validates and writes each event to a Redis queue, acknowledging in milliseconds regardless of burst size, and a small pool of Celery workers consuming from that queue at a rate calibrated against their enrichment provider's actual API ceiling.

They add a dead-letter queue for events that fail after three retry attempts, and an idempotency check keyed on each event's unique funding-announcement identifier, so a duplicate crawl result doesn't create a duplicate account record.

The next time the crawl catches a similarly large batch, all sixty events are received and queued within seconds, and the worker pool processes them over the following several minutes at a controlled, sustainable rate, with two events that hit a genuine, permanent enrichment failure landing visibly in the dead-letter queue for manual review rather than disappearing without a trace.

Nothing about the underlying scraping logic changed, the entire fix was in the architecture handling the events after they arrived.

How I build Async Webhook architecture for GTM pipelines?

I build the queue-and-worker separation covered in this guide into every high-volume GTM pipeline I design, treating a webhook receiver as a thin, fast acknowledgment layer rather than a place where real processing happens synchronously.

This connects directly to my broader work on how to automate GTM workflows end to end and GTM systems architecture design, applied here specifically to the backend reliability layer that determines whether a signal-based pipeline actually holds up during a real volume spike or quietly drops data the first time one occurs.

Every pipeline I build ships with dead-letter queue capture, idempotency handling, and queue-depth monitoring from day one, so a burst of volume becomes a manageable, visible event rather than a silent, undiscovered data loss.

Not sure whether your current webhook setup would survive a genuine volume spike? See how my process works before the next one hits you.

Conclusion

A webhook receiver that processes events synchronously works fine until the exact moment a GTM pipeline actually needs it to work, a burst of signal events arriving all at once, which is precisely when a naive architecture silently drops data with no visible error.

The fix isn't more retries bolted onto the same synchronous design, it's a genuine architectural separation: a thin, fast receiving endpoint, a durable queue absorbing bursts, a worker pool processing at a rate that respects downstream limits, a dead-letter queue capturing genuine failures, and idempotency handling that makes retries safe rather than destructive.
